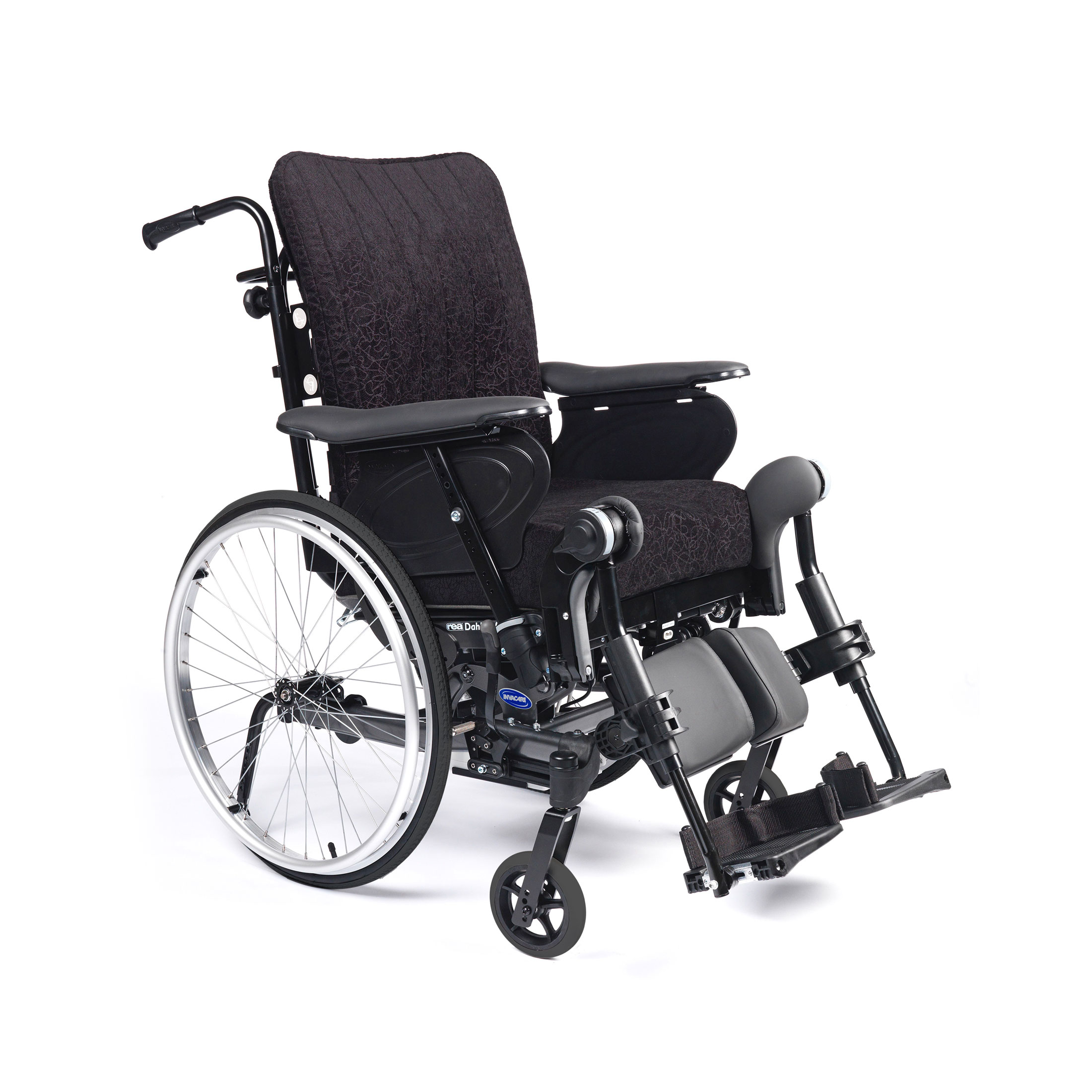

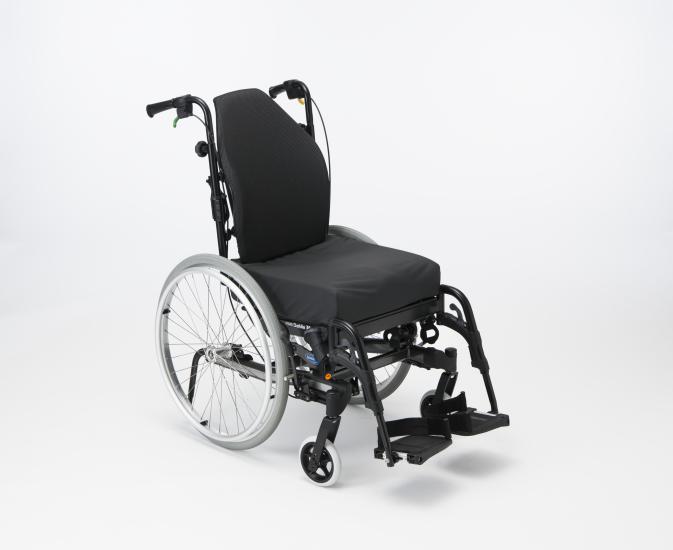

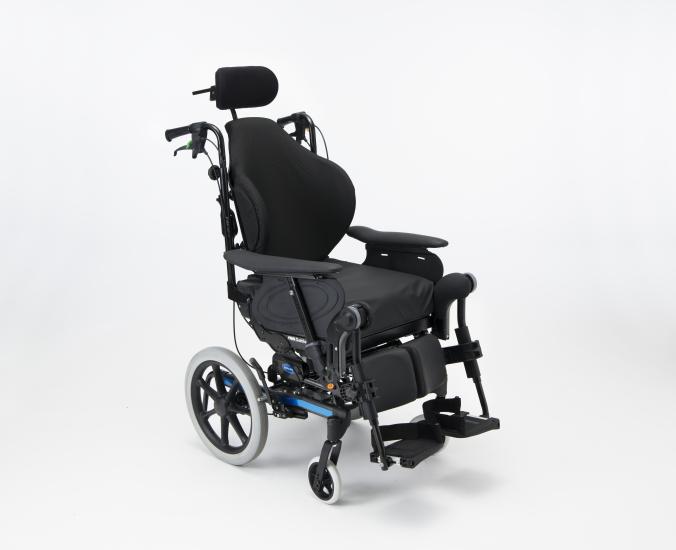

Rea Dahlia Manual Wheelchair
Rea Dahlia Manual Wheelchair

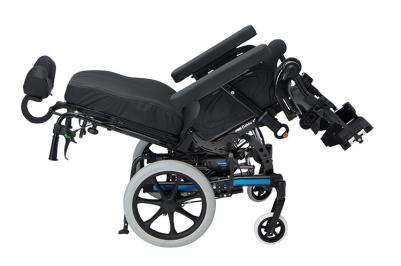

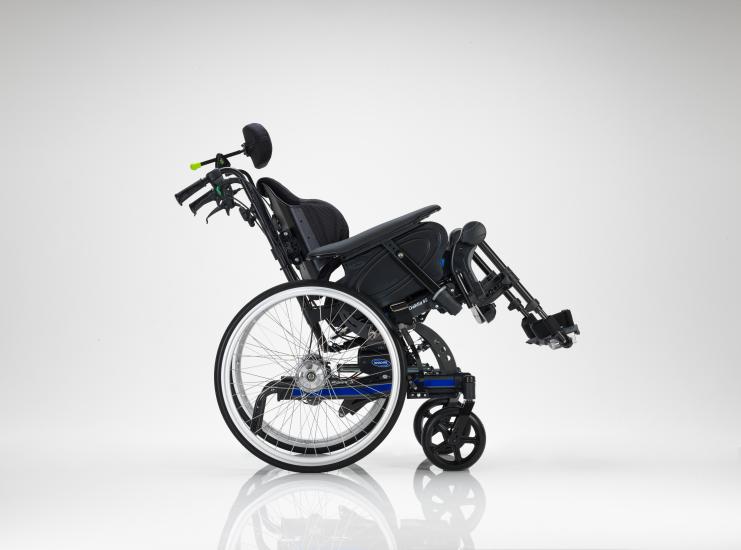

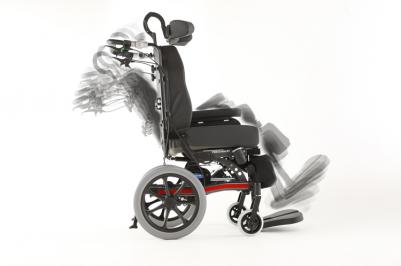

The Dahlia is designed with the end user in mind. Sleek, stylish appearance but with that all important smaller footprint. Highly adjustable and with up to 45 degrees of tilt, the Dahlia offers excellent pressure relieving properties. The Dahlia offers all the options of the Rea Azalea with that extra pressure relief if needed. Crash tested.
Arrange a Demonstration
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Rea Dahlia Manual Wheelchair
product information
| Technical Data | |
|---|---|
| Seat Width | 390–440 / 440–490 / 490–540 16” (390–490 / 440–540 / 490–590 mm) |
| Seat Depth | 430 – 500 mm |
| Seat Angle | 30°: –1 – 30° / 45°: 0 – 45° |
| Seat Height | 30°: 330 – 500 mm / 45°: 350 – 500 mm |
| Backrest Angle | 0° – 30° |
| Backrest Height | 500 – 800 mm (without seat cushion) |
| Length of Footrests | 330 – 500 mm |
| Armrest Height | 250 – 320 mm |
| Driving Unit Width | SW + 160 mm (16”) / SW + 180 mm (24”) |
| Total Length inc. Footrests | 900 – 1180 mm |
| Total Height | 30°: 825 – 1250 mm / 45°: 850 – 1250 mm |
| Max. Safe Slope | 7° |
| Turning Diameter | 755 mm |
| Max. User Weight | Max 135 kg |
| Total Weight | >35 kg |
| Transport Weight | 21 / 25 kg (SW 390 mm) |
| Crash Tested | Yes |
| Frame Colour | Black |
| Colour (Other) | Black Dartex TR26, Black Plush TR35, Black Spacer TR36 |
Overall weight in seat width 39 cm and with lightest configuration.
The E-tilt and Recline option adds 4.2 kg to the transport weight.
