MOMENTUM HEALTHCARE

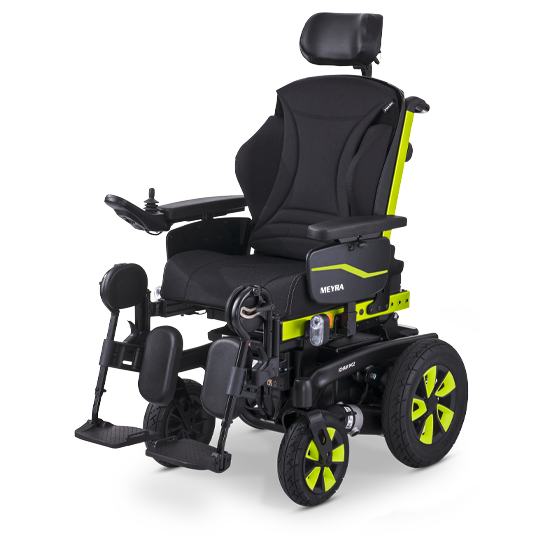

Meyra iChair MC2

The MC2 is a great chair for those needing more options than the MC1 but with that same compact base. Available in an RS version for people who like a bit of speed! Cool stylish design is sure to turn a few heads. Indoor/Outdoor rear wheel drive

enquire now

Arrange a Demonstration

Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.

Meyra iChair MC2

product information

Dimensions in mm, Weights in kg, Speed in km/h, Tolerance ± 10 mm
*60 mm with 9“/12“ and 70 mm with 10“/14“ wheels

Seat width	380 – 650
Seat depth	400 – 560 / 400 – 560 / 500 / 480 – 530
Back rest height	450 – 500 / 530 – 570 / 640 / 640
Shank lenght	280 – 430 / 350 – 500 / 350 – 500 / 350 – 500
Arm support height	240 – 350 / 180 – 290 / 140 – 250 / 180 – 290
Front seat height	430 – 530 / 500 – 600 / 560 – 650 / 580 – 680
Length with footrests	1,130
Length without footrests	830
Width ready to go	580 – 620
Height without headrest	930 – 1130
Transport dim. length	830
Transport dim. height min.	570
Front wheel size	260 x 70 (10″)
Front wheel size	230 x 70 (9″)
Rear wheel size	356 x 75 (14″)
Rear wheel size	320 x 75 (12,5″)
Max. obstacle height	70*
Turning radius	840
Empty transport weight min.	100
Client weight max.	160
Permitted overall weight	320
Additional loading max.	10
Driving speeds	6/10
Motor performance	2 x 220 / 2 x 350
Driving range max.	40
Max. range in km, with battery 43 Ah (5h), 50 Ah (20h)	25 – 30
Max. range in km, with battery 63 Ah (5h), 73 Ah (20h)	35 – 40
Permitted gradient	15 %
Type of steering	indirect
Electric lift	300
Electric tilt-in-space	-2° to +26°
Mechanical tilt-in-space	0° to +10°
Back angle electric	-10° to +50°
Back angle mechanical	-10° to +30°
