TDX SP2
TDX SP2

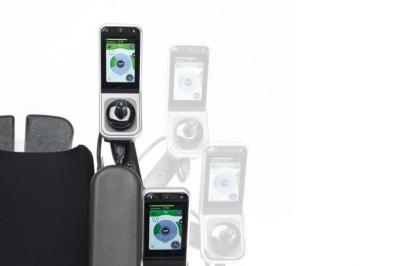

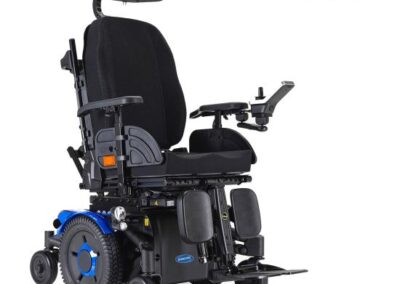

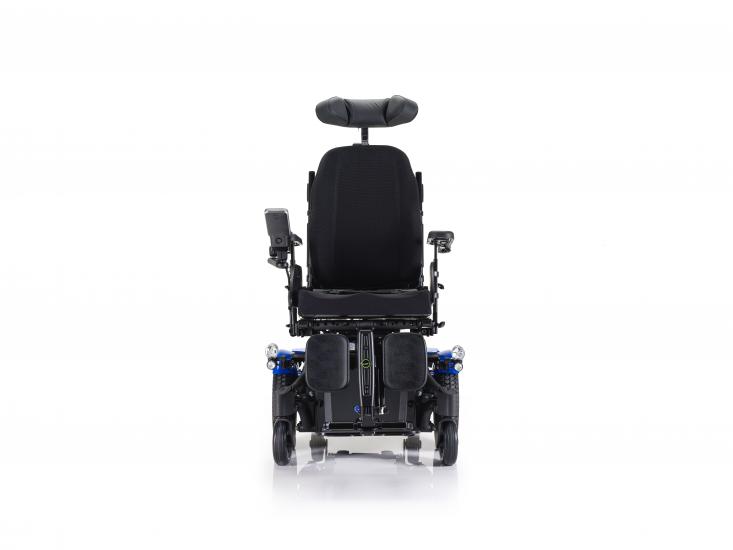

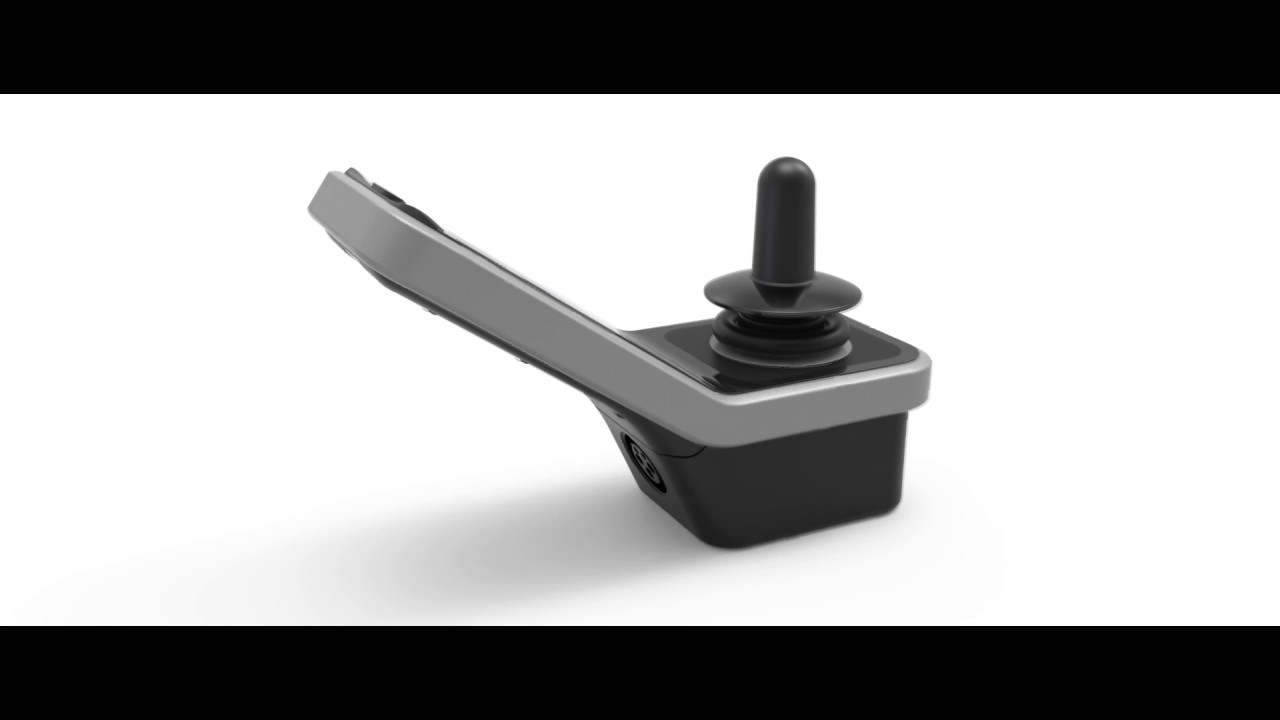

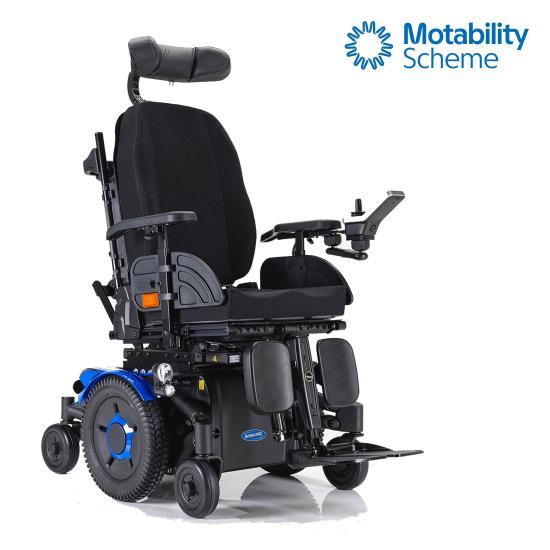

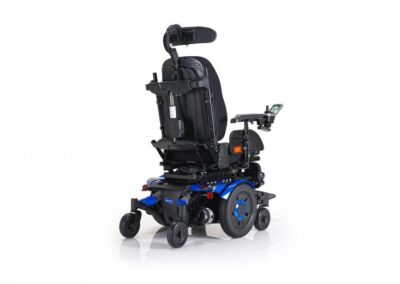

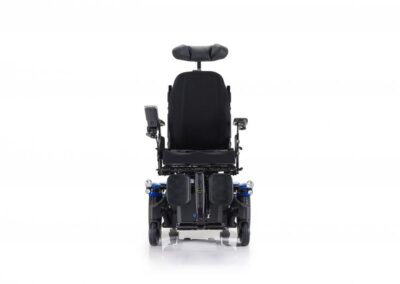

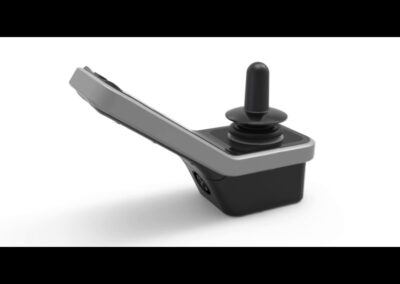

The Invacare TDX is our most popular, mid wheel drive powered wheelchair. Available with a wide range of seating options, easily adjusted and serviced, the Invacare TDX is a joy to supply. Available in the SP2, SP2 NB and SP2 Max versions, the TDX is sure to meet your needs. The innovative Linx control system is an intuitive driving experience. A wide range of colour options really can make the chair pop and with various special control options, the TDX is a must see for all Healthcare professionals. Indoor/Outdoor Mid wheel drive.
Arrange a Demonstration
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
TDX SP2
product information
| Technical Data | |
|---|---|
| Seat Width | 380 – 530 mm |
| Seat Depth | 410 – 510 mm |
| Seat Height | 450 / 475 mm / 475 – 775 mm |
| Backrest Height | 480, 540, 560 mm |
| Armrest Height | 245 – 310 / 295 – 360 mm |
| Length of Footrests | 290 – 460 mm |
| Seat Angle | 0 – 20° / 0 – 30° |
| Backrest Angle | 90° – 120° |
| Total Height | 1010 – 1170 mm |
| Total Length Without Footrests | 980 mm |
| Driving Unit Width | 650 mm |
| Total Length | 1160 mm |
| Max. User Weight | 180 kg / 160 kg |
| Battery Capacity | 73.5 Ah (C20) |
| Turning Diameter | 1120 mm |
| Max. Climbable Obstacle Height | 75 mm |
| Max. Safe Slope | 9° / 16% |
| Motor Capacity | 2 x 324 W / 2 x 340 W |
| Speed | 6, 8, 10 or 12 km/h |
| Driving Range | Up to 33 km |
| Total Weight | 154 kg |
| Crash Tested | Yes |

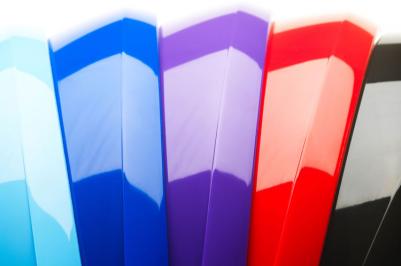

| Rim Colour | Obsidian Black, Peacock Blue, Arctic Blue, Ruby Red, Purple Passion |
| Shroud Colour | Obsidian Black, Peacock Blue, Arctic Blue, Ruby Red, Purple Passion |
Comment
1. Seat cushion 430 mm
2. Additional 100 mm by armrest adjustment
3. Extended profile rail package for larger seat depth
4. Ground to seat plate without cushion
5. With seat lifter or powered tilt
6. With lifter
7. Measured from seat plate
8. Measured from footplate to seat plate
9. Depending on seat position
10. Width of wheelbase
11. Depending on configuration
12. Measurement with 73.5 Ah batteries according to ISO 7176-4 @ 6 km/h, driving range will vary by configuration (battery size, speed)

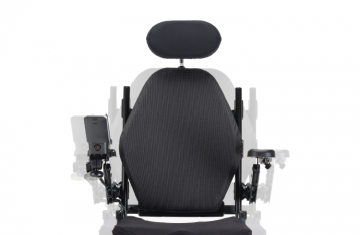

13. Invacare Modulite™ seat components are cross compatible across the Invacare power wheelchair range and partly with the Invacare Rea® family.
14. 12 km/h DuraWatt motors
