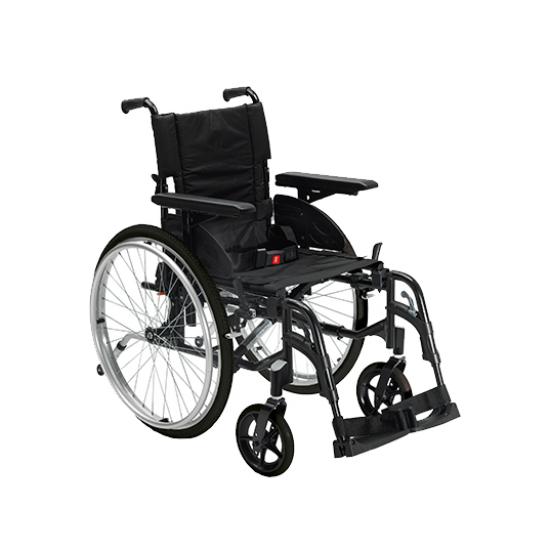

Action 2 NG Manual Wheelchair
Action 2 NG Manual Wheelchair
The Action 2 from Invacare offers a great entry to the low end, wheelchair market segment. Weighing in at only 16.2kg, the chair comes in a variety of sizes and fold into a compact unit for easy storage. Available in both attendant and self-propel models, the Action 2 offers cross compatibility with the full Action range to keep costs down when spare parts are required. Crash tested with headrest.
Arrange a Demonstration
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Action 2 NG Manual Wheelchair
product information
| Technical Data | |
|---|---|
| Seat Width | 380 / 405 / 430 / 455 / 480 mm |
| Seat Depth | 400 / 430 mm |
| Seat Angle | 3° |
| Seat Height | Self propel: 460 / 485 / 510 mm; Transit: 485 / 510 mm |
| Backrest Angle | 7° / 0° – 30° |
| Backrest Height | 430 mm |
| Front Frame Angle | 80° / 0° – 80° |
| Length of Footrests | 330 / 460 mm |
| Armrest Height | 200 – 280 mm (n°1) / 240 mm (n°2) |
| Driving Unit Width | Self propel: Seat width + 200 mm; Transit: Seat width + 145 mm |
| Total Width Folded | Self propel: 325 mm; Transit: 240 mm |
| Total Height Folded | 935 mm |
| Total Length | Self propel: 1030 – 1080 mm; Transit: (unspecified) |
| Total Length Without Footrests | Self propel: 820 / 870 mm; Transit: 725 mm |
| Total Height | Self propel: 920 / 945 / 970 mm; Transit: 945 / 970 mm |
| Max. Safe Slope | 7° |
| Turning Diameter | 790 mm |
| Max. User Weight | 125 kg |
| Total Weight | Self propel: 16.2 kg; Transit: 14 kg |
| Transport Weight | Self propel: 8.9 kg; Transit: 12.1 kg |
| Crash Tested | Yes |
| Frame Colour | Anthracite Black |
| Colour (Other) | Upholstery: Black Nylon |
Additional Documents:
- User Manual (1)
- Service Manual (1)
- Test & Certificates (2)
- Miscellaneous (2)
documents
